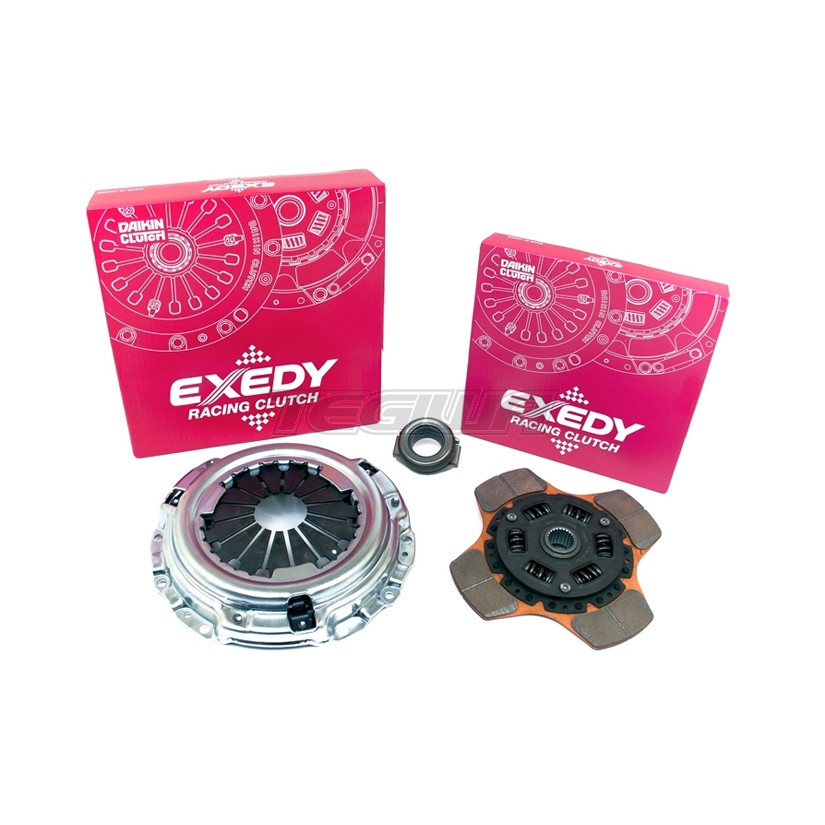

EXEDY RACING SINGLE SERIES STAGE 2 SPORTS HEAVY DUTY CLUTCH KIT MITSUBISHI EVOLUTION VII VIII IX X 4B11T 4G63T

Main Benefits
A reduction of 10% inertia over the original equipment part.
Up to a 40% increase in torque capacity over standard.
Approximately 40% higher clamp load than the standard clutch.

Suitable For
Road
Track Day
Circuit Racing
Time Attack
Drifting
Drag Racing
Rally

Clutch Cover
Single Series clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part enabling a higher torque capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges. Note: Single Series Clutch Kits with HD in the middle of a kit reference denote that the cover has a higher clamp load. e.g. Mitsubishi EVO Organic kit: MK04HD601

Clutch Disc
Manufactured using a unique metallic configuration and low density metallic material, T5001 Carbonrich, S-Type cerametallic discs are designed to be light weight; inertia is 10% lower than the genuine part. Stage 2 Sports discs have excellent heat dissipation characteristics.

Note: There are two variations of S-Type kits for some models. For example, the kit FK01T601 has a 3 paddle disc whereas the kit FK01T1601 has a 4 paddle disc. In comparison the 4 paddle disc provides a reduced pedal effort, whereas the lighter 3 paddle disc allows for a quicker shifting response.

Specifications

Outer Diameter (mm)
240
Disc Facing
Cerametallic
Push/Pull Type
PULL
Sprung Centre Disc?
Yes
Torque @ Flywheel
580 lb-ft / 780 Nm
Torque @ Wheels
470 lb-ft / 630 Nm
Clamp Load (N)
16000
No. of Paddles
4
Additional Information
With bearing(s)
